Price for full bikes will range from $7,500 to $16,700 depending on groupset and setup of choice.
Call or visit our Chapter 2 Cycle Store to check on stock availability and for more information on the bike.

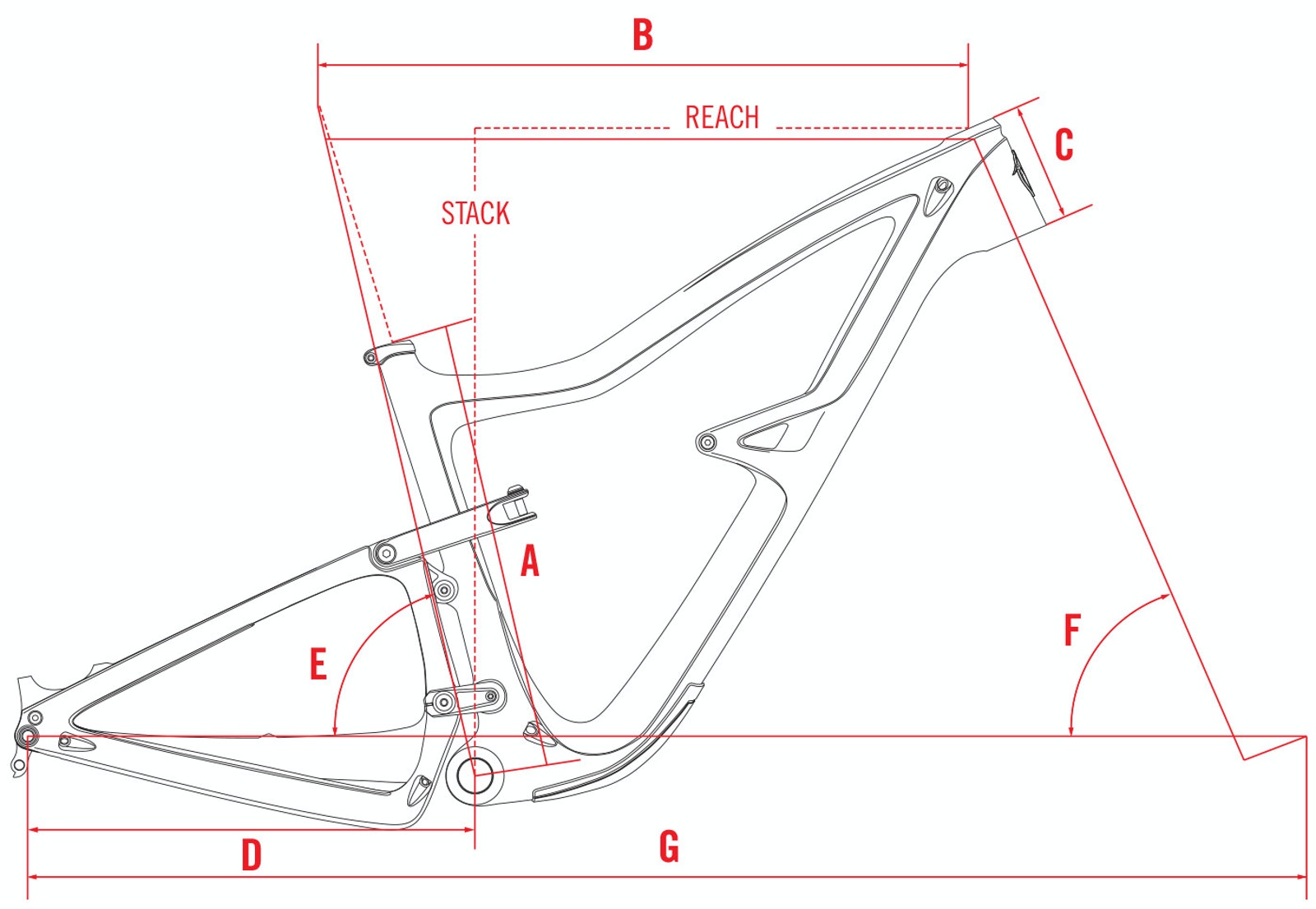

LONGER, SLACKER, STEEPER
With its well balanced modern geometry, the Ripley is ready for any adventure. The long front end, slack head angle, and short rear end gives you the confidence to try new lines, while the steep seat tube angle and shorter offset fork makes it easy to maneuver technical climbs and flowy singletrack.
DW LINK
Since 2005, we’ve partnered with suspension guru Dave Weagle on the dw-link suspension platform. It provides an unparalleled combination of climbing efficiency and downhill performance, that has been proven repeatedly at the highest levels of racing.
LONG DROPPER POST
We use names like small, medium, and large to describe our sizing because it’s easy to understand, but our ultra low standovers and clearance for long droppers give you the ability to size based on reach.
LIGHTWEIGHT PREMIUM CARBON, FOR EVERYONE
Whether you order an XTR or NX kit, you’ll get the same premium carbon fiber frame. All our bikes are built from the highest grade materials and optimized for the best strength, weight, stiffness, and ride performance. The Ripley weighs 5 lbs without shock.
FORK OFFSET
Sometimes, shorter is better. Instead of the typical 51mm offset, the new Ripley uses a 44mm offset. This gives you the stability of a slacker head angle, while retaining the BMX like feel of, well, a Ripley.
2.6" TIRE CLEARANCE
We pioneered the wide rim revolution a few years ago and inspired a new crop of wider 2.4” — 2.6” tires. When paired together, this combo can be run at ultra low pressures that produce elbow-dragging cornering traction without sacrificing speed.
Specifications
Frame Material | Carbon Fiber Monocoque |
Frame Weight | 5lbs (M, w/o shock) |
Wheel Size | 29” / up to 2.6” tires |
Front Travel | 120-140mm forks |
Rear Travel | 120mm |
Shock Specs | 190 x 45mm |
Boost Axles | 148mm rear / 110mm front |
Seatpost Diameter | 31.6mm |
Rear Brake | 160mm post mount / 203mm max rotor |
Chainstay Length | 432mm (17 inches) |
Bottom Bracket | Threaded (73mm English threaded) |
Chainline | 52mm chainline, 168mm Q Factor |
ISCG 05 Compatible | Optional removable adapter |
Headset | ZS44 upper / ZS56 lower |
Colors | Matte Braaap or Blue Steel |
Sizes | S / M / L / XL |
Warranty | 7 years |
