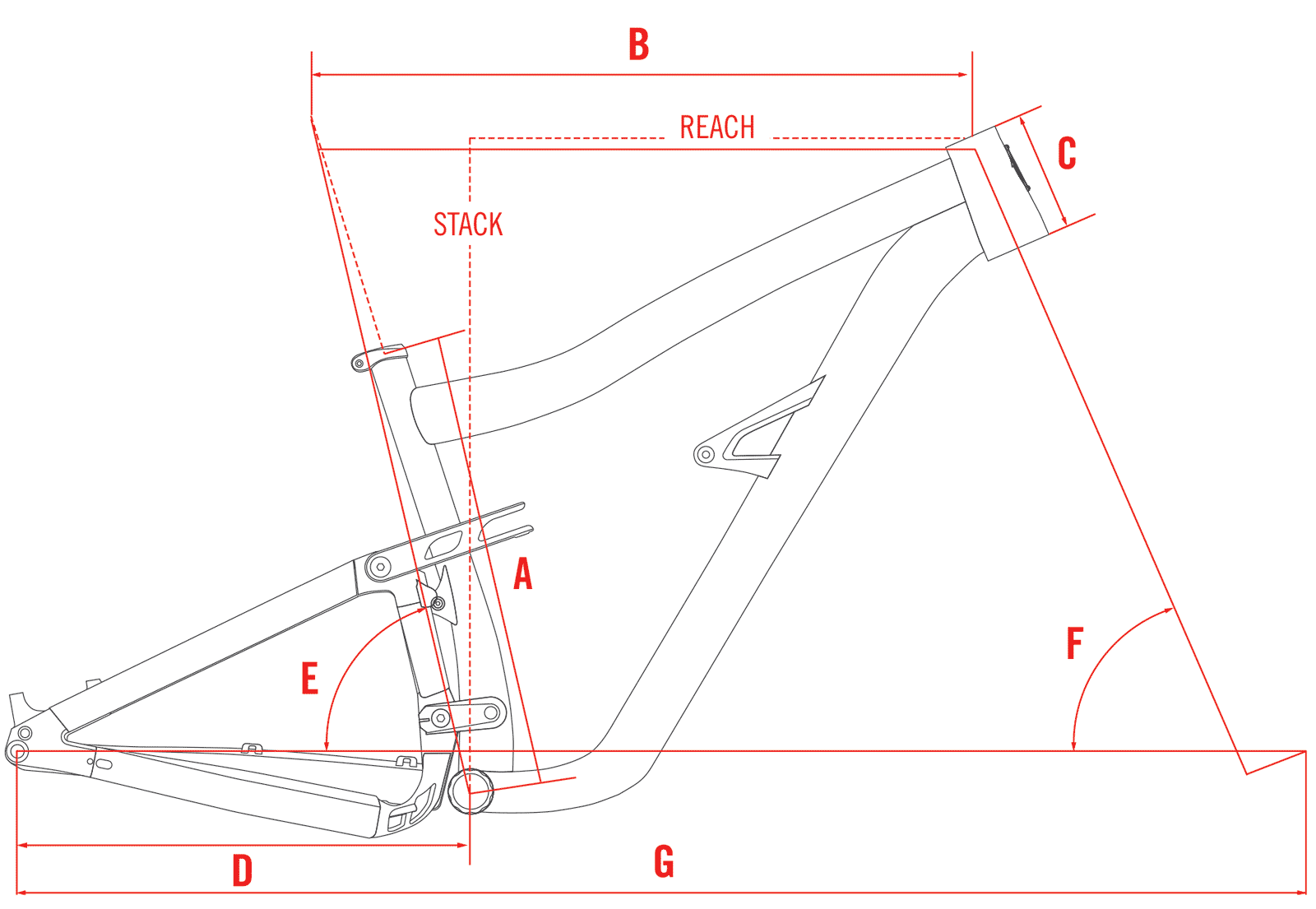

MODERN GEOMETRY, PRECISE HANDLING
A trail-friendly 65.5-degree head angle and short (44mm) offset 130mm fork combined with 29” wheels makes for a super planted but still playful front end feel. A 76-degree seat angle puts your power directly to the pedals, while the short chainstays and pedal-friendly dw-link kinematics deliver that power without squandering a single watt.
DW LINK SUSPENSION
Our 15-year collaboration with Dave Weagle has yielded yet another bike with unparalleled climbing efficiency and tractability. Incredible snap and responsiveness are its trademarks, and a whole mess of plush, chunder-eating, downhill-crushing goodness gets thrown in for good measure. Wrap that together and you get the best suspension you’ll find anywhere. It’s that good.
|Frame Weight||7.45 lbs with shock|
|Shock Specs||190 x 45mm|
|Boost Axles||148mm rear / 110mm front|
|Rear Brake||160mm post mount / 203mm max rotor|
|Chainstay Length||432mm (17 inches)|
|Bottom Bracket||Threaded BB (73mm BSA)|
|ISCG 05 Compatible||Optional removable adapter|
|Headset||ZS44 upper / ZS56 lower|
|Colors||Monolith Silver or Pond Scum Green|
|Sizes||S / M / L / XL|
Discover more about the Ibis Ripley AF Mountain Bike at https://www.ibiscycles.com/bikes/ripley-af
