Price for full bikes will range from $7,500 to $16,700 depending on groupset and setup of choice.
Call or visit our Chapter 2 Cycle Store to check on stock availability and for more information on the bike.

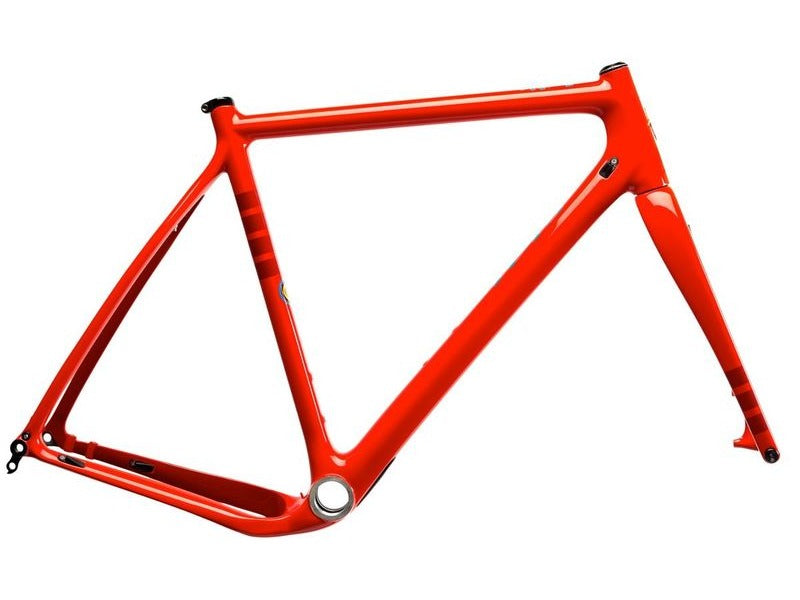

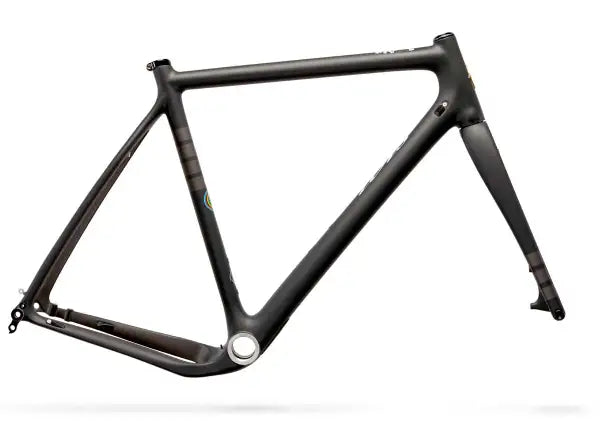

With its ultra versatile geometry and 1000g frame weight, the Hakka MX is just as happy crushing the local club ride as is it is jumping barriers or camping out.

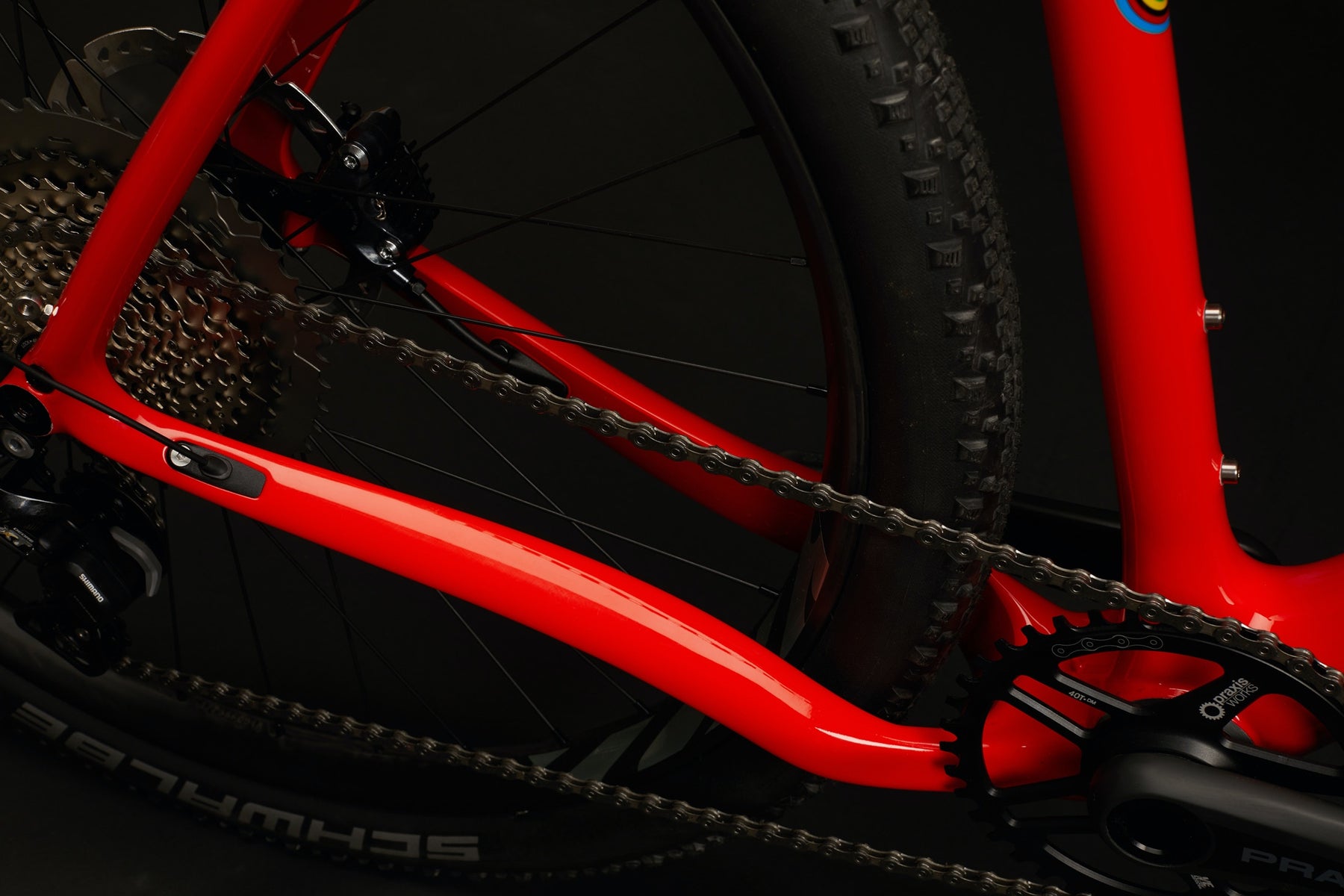

It’s good to have options. With the Hakka MX, you can run road, cross and gravel friendly 700c wheels, or if you are into burlier backcountry exploration, go with 27.5/650b. With the Hakka MX, you don’t have to pick one tire option or the other. Our subtle sculpted chainstays give the frame clearance for up to 700 x 40c or 27.5 x 2.1” tires.
CABLE ROUTING OPTIONS GALORE
No matter what drivetrain you prefer, 1x, electronic, or 2x, the Hakka MX has you covered. The frame has internal cable routing provisions for every drivetrain on the market, plus a dropper post. We’ve even included a slick Di2 battery mount inside the downtube.
We’ve tried every bottom bracket under the sun and in the end, we haven’t found anything that’s more reliable than a threaded BB. Our Hakka features the T47 BB standard, which uses 30mm bearings enabling you to use the recent crop of lightweight cranksets. This is the best way to combine a threaded BB with 30mm spindle compatibility. It’s lightweight, quiet and durable, because no one likes a creaky bike.
DISC BRAKES & FENDER MOUNTS

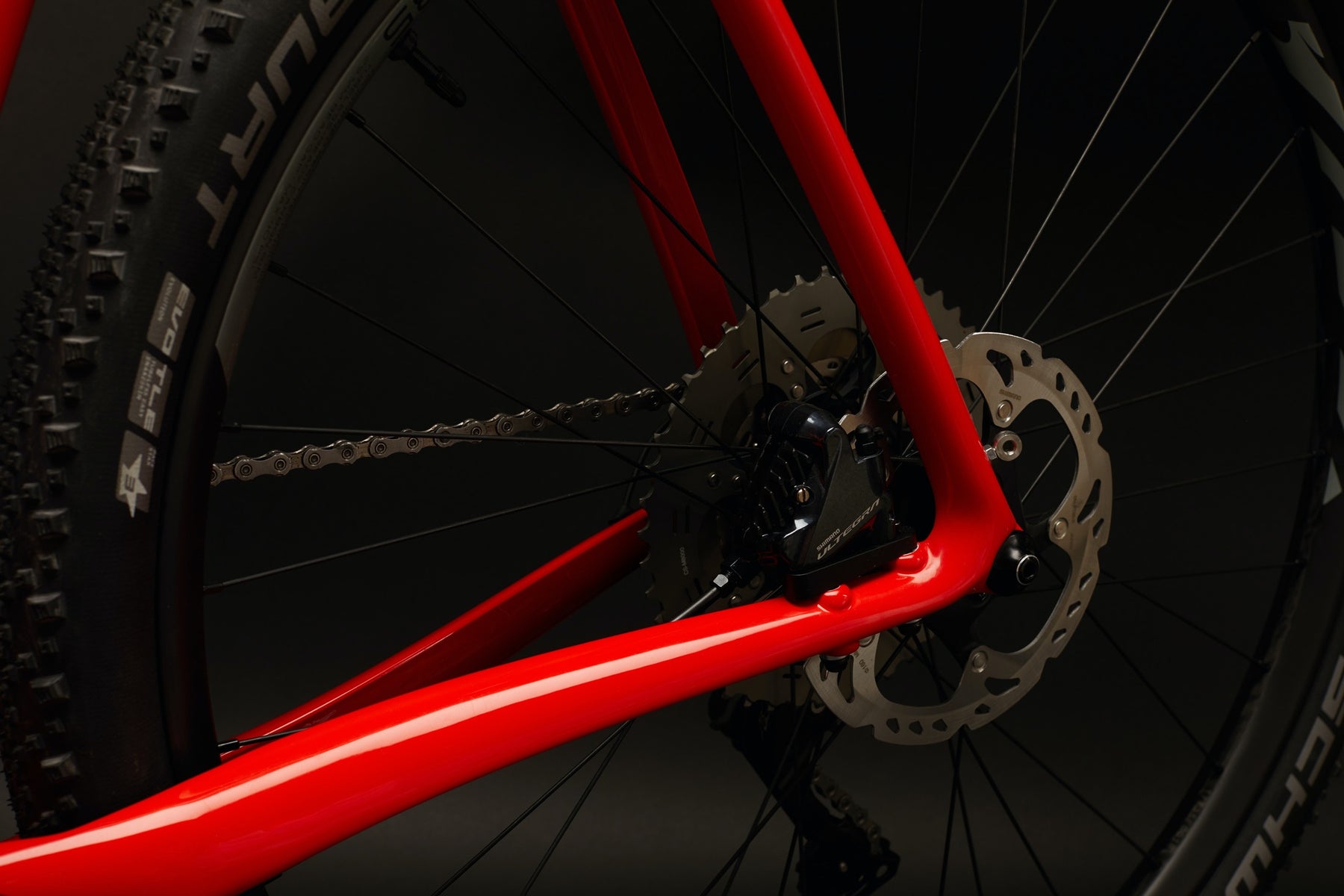

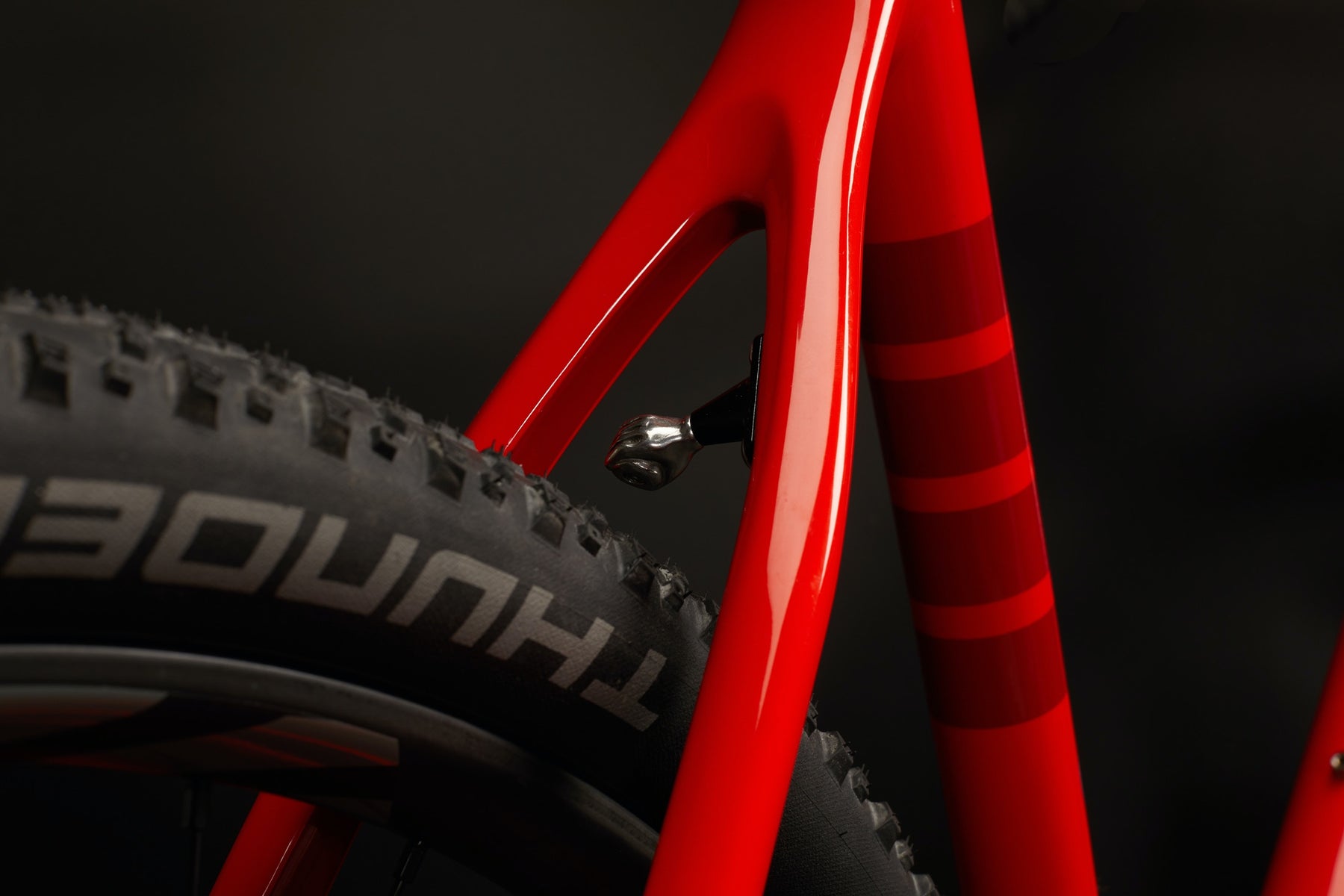

The Hakka MX has flat-mount disc mounts and fits a 160mm rotor. The ENVE G Series Gravel fork has fender eyelets, internal cable routing and monster clearance for 700c x 50c or 27.5″ x 2.25″ tires. There’s also a removable rear fender mount on the seat stays.
|Frame Material||Carbon fiber monocoque|
|Wheel Size||700c or 650b/27.5"|
|Rear Axle||142mm x 12mm thru-axle|
|Front Axle||100mm x 12mm thru-axle|
|Seatpost Diameter||31.6mm / Dropper Post Compatible|
|Front Brake||Flat-mount front disc, 160mm rotor (some images show post mount)|
|Rear Brake||Flat-mount rear disc, 160mm rotor|
|Bottom Bracket||T47 Threaded Bottom Bracket|
|Tapered Headtube||IS 41/28.6 upper, IS 52/40 lower|
|Drivetrain||1X or 2X compatible, Di2 compatible, up to 48t 1X chainring, 34t minimum|
|Front Derailleur Spec||34.9mm clamp, bottom pull|
|Colors||Bone White/Teal, Coal or Fireball|
|Sizes||49 / 53 / 55 / 58 / 61|
|Frame Warranty||7 Years|
